Description

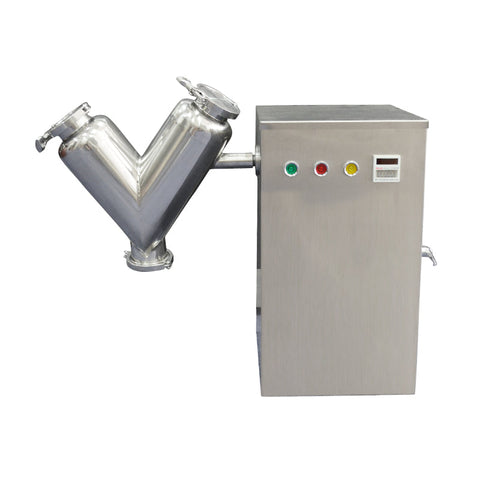

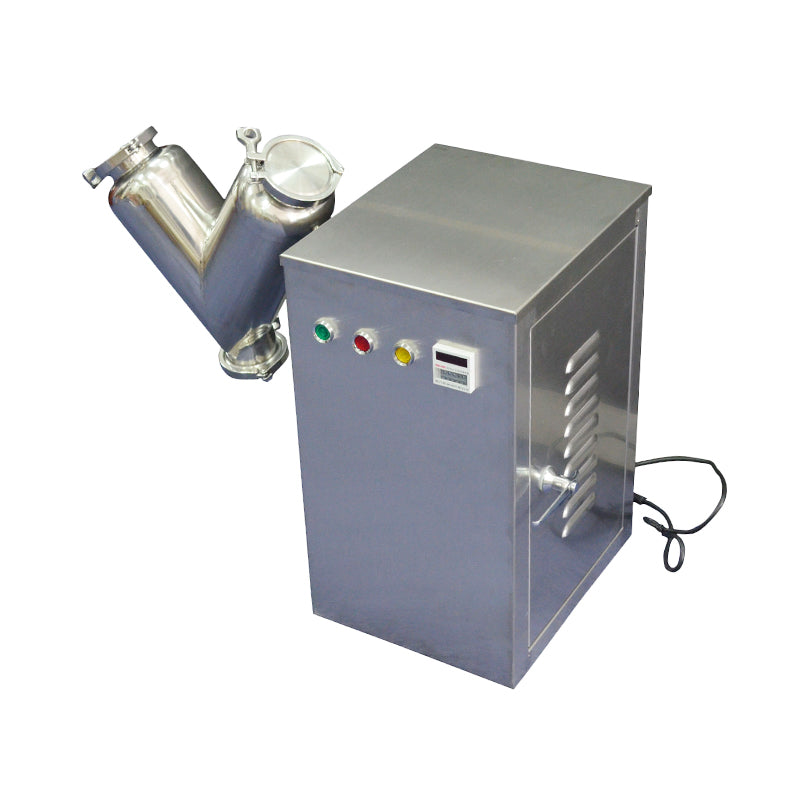

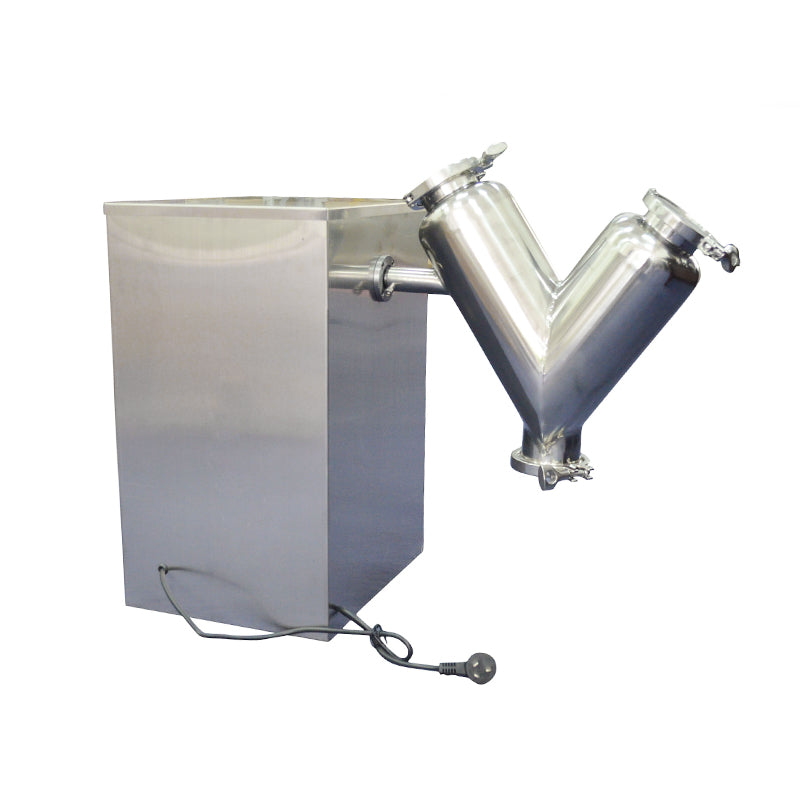

VH5/VH8/VH14 V mixer is suitable for pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries of dry powder, granular material mixing.This mixture tube structure is unique,even and with high effiency, no accumulation of material.Simple structure,easy to operate. All sections of contacting the material use stainless steel.The external apperance is beautiful,it is convenient to maintain and clean. It is an ideal equipment for enterprises.
Technical Parameters：
|
Model |
VM-2 |
VM-5 |
VM-8 |
VM-14 |
VM-20 |
|
Barrel volume (L) |
2 |
5 |
8 |
14 |
20 |
|
Working volume (L) |
0.6 |
2 |
3.2 |
5.6 |
8 |
|
Motor power (Kw) |
0.04 |
0.55 |
0.55 |
0.55 |
0.55 |
|
Hybrid speed (r/min) |
24 |
24 |
24 |
20 |
20 |
|
Overall size(cm) |
42*36*43 |
56*36*56 |
66*36*63 |
92*36*80 |
120*35*88 |
|
Maximum loading (Kg) |
1 |
2 |
3 |
5 |
10 |
|
Machine weight(Kg) |
19 |
55 |
60 |
75 |
120 |
