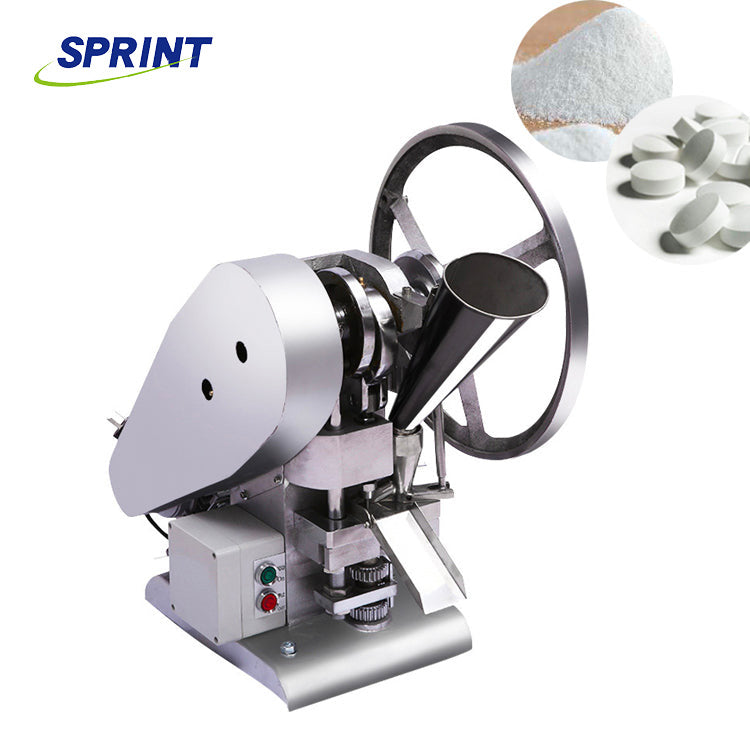

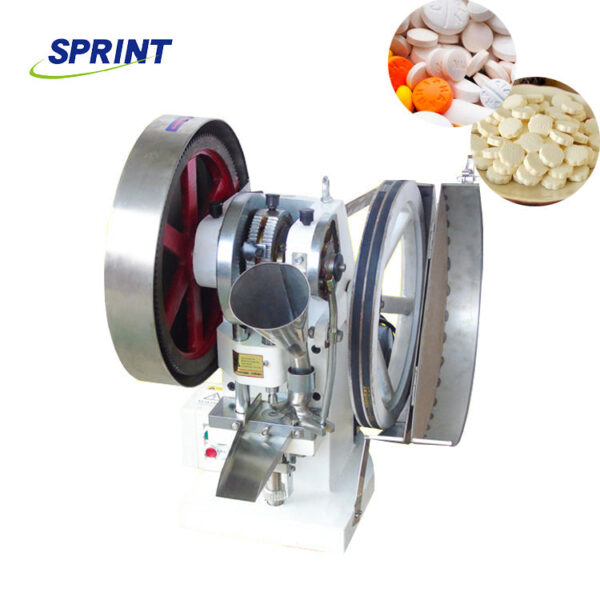

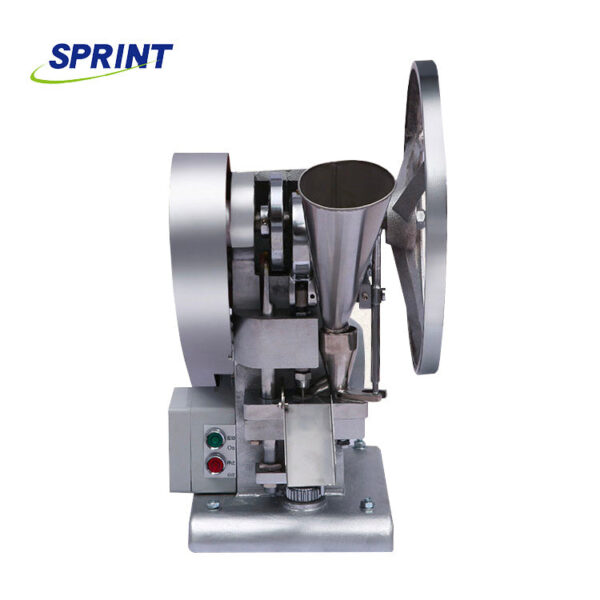

Press Tableting Machine

Tablet press machine Product manual

Model	TDP-1.5T	TDP-5T	TDP-6T
Max.Pressure	15KN	50KN	60KN
Max.Tablet Diameter	4-12mm/0.15”-0.47”	4-20mm/0.15”-0.8”	4-25mm/0.15”-0.98”
Max.Tablet Thickness	6mm/0.24”		6-8mm/0.24”-0.31”
Max.Filling Depth	12mm/0.47”	16mm/0.63”
Production Capacity	4500-6000pcs/hour		3000-4000pcs/hour
Weight	50kg	130kg	145kg
Dimension	700*370*800mm	700*400*800mm	700*500*900mm
Motor Speed	1400r/min
Motor Power	370w	750w	1100w

Additional explanation

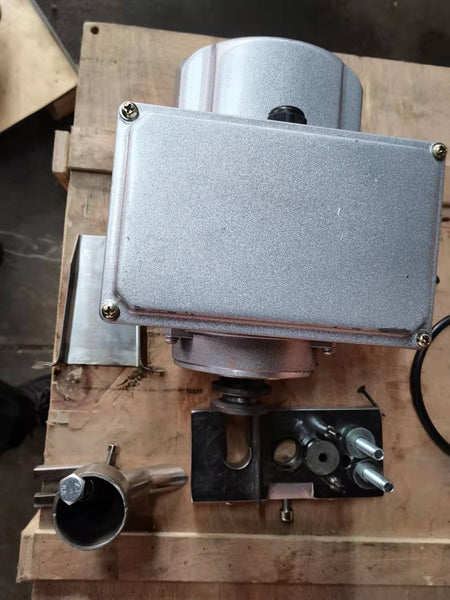

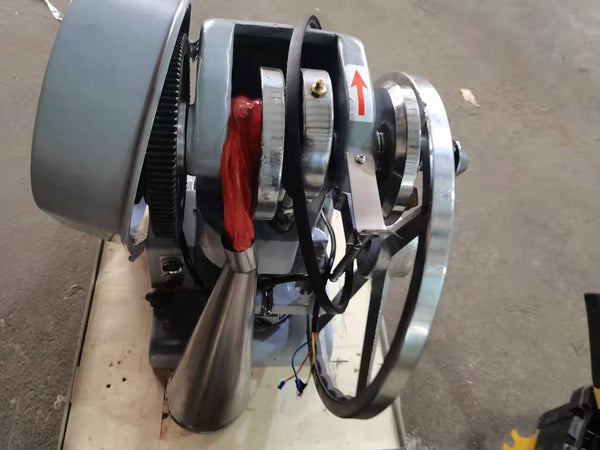

In order to facilitate transportation, let the tablet press pass through customs as soon as possible to reduce transportation time. We will disassemble the machine into two parts and ship by express. To ensure that the goods can reach the delivery address smoothly, we will provide assembly videos to facilitate self-assembly after arrival.
