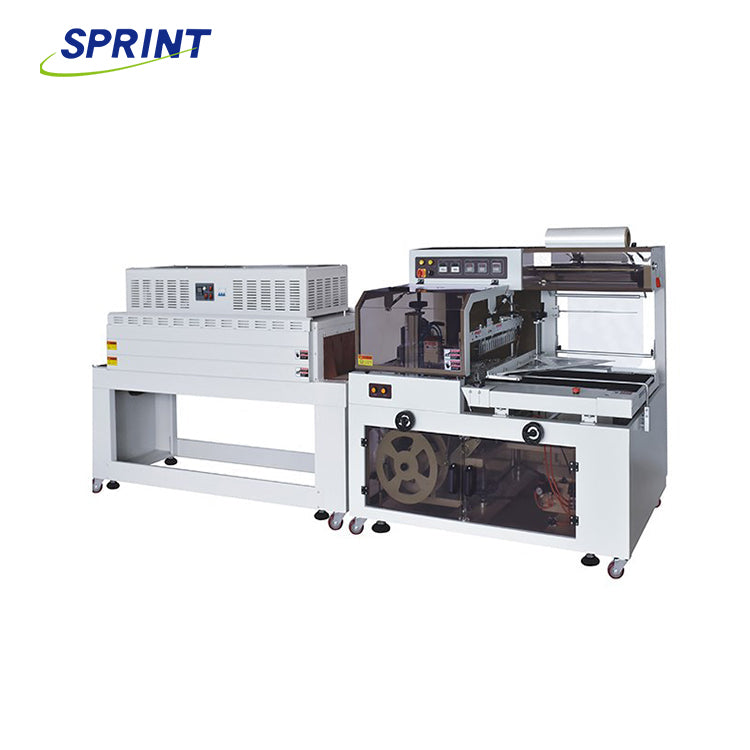

L-Bar Sealing Machine, Fully Automatic Box Shrink Packaging Machine

$8,800.00$10,500.00

SKU: 6891619680313 Categories: , Tag:

Description

FQA-450+BSE-4522 L-bar automatic heat shrink carton orbital wrapping machine, fully automatic boxes shrink wrap machine, Shrink wrapper

Model:
FQA-450
FQA-550
Packaging Speed:
15-30times/min
15-30times/min
Conveying Weight:
10kg
10kg
Film Width:
≤500mm
≤600mm
Packing Size:
450mm>L>100mm ,
W<330mm, H≤140mm,
L+H<500mm, W+H<400mm
550mm>L>100mm ,
W<430mm, H≤140mm,
L+H<600mm, W+H<500mm
Packaging dimension:
1700*1010*1560mm
1960*1100*1600mm
Voltage:
110/220V 50-60hz
110/220V 50-60hz



Model:
BSE-4522
BSE-5530
Conveying Speed:
1-15m/min
1-15m/min
Conveying Weight:
20kg
20kg
Heating Power:
9kw
10kw
Shrink Tunnel Size(L*W*H):
1300*450*220mm
1300*550*300mm
Packaging dimension:
1810*810*1450mm
1870*900*1580mm
Voltage:
220/380V 50-60hz
220/380V 50-60hz

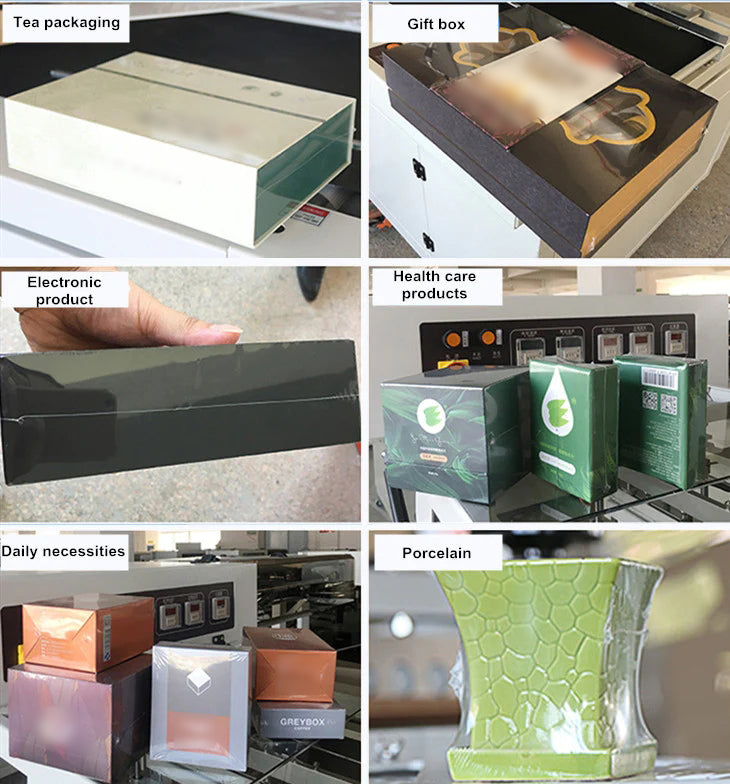

The automatic shrink wrapper machine is a fully automatic unmanned packaging machine with automatic film feeding and punching device, manual adjustment film guide system and manual adjustment feeding and conveying platform. It can be used in a packaging assembly line, feeding, The bagging, sealing and cutting, and shrinkage are automatically completed. High work efficiency, widely adapted to mass shrink packaging of printing, software, CD boxes, electronic products, food, color boxes, cosmetics, greeting cards, photo albums, photo frames, medicine, daily chemicals, cosmetics, flooring, ceramics, beverages, hardware, etc. industry. A single machine is suitable for products of different heights and widths.
