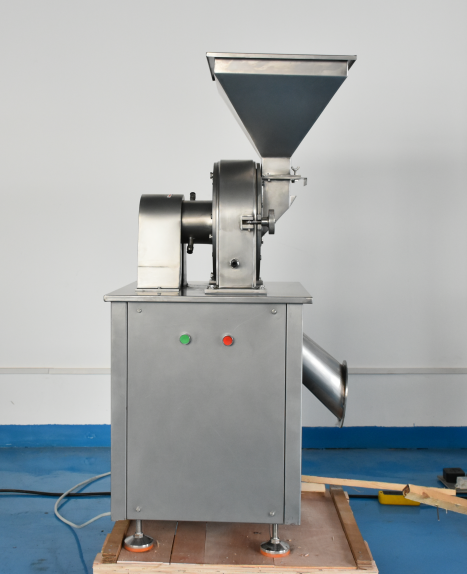

Stainless steel high speed pulverizer

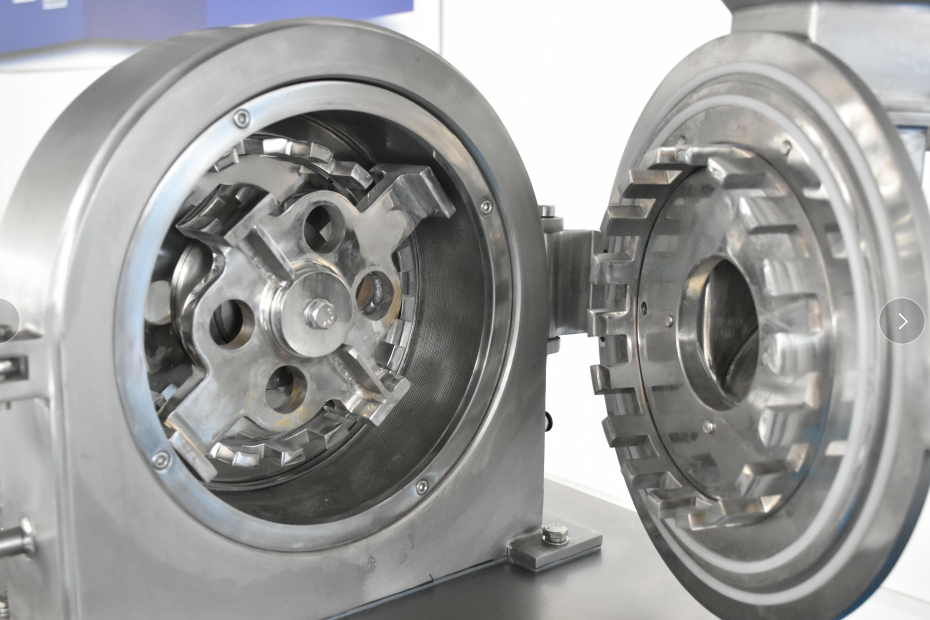

The SF series pulverizer utilizes the high-speed relative motion between the movable toothed plate and the fixed toothed plate, so that the crushed materials can be pulverized by the comprehensive action of gear impact, friction and impact between materials. The machine is simple in structure, strong in operation, stable in operation and good in crushing effect. The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing mesh screens with different apertures. In addition, the machine is made of stainless steel.
| Model | Spindle speed(r/min) | Production capacity(kg/h) | Power(kw) | Crushing fineness (mesh) | Machine size(mm) | Machine weight(kg) |
| SF-130 | 7000 | 2-5 | 1.1 | 10-120 | 400*350*850 | 75 |
| SF-180 | 7000 | 10-30 | 2.2 | 10-120 | 690*420*880 |
85 |
| SF-250 | 5000 | 50-250 | 5.5 | 10-120 | 950*520*1250 | 220 |
| SF-320 | 4000 | 80-300 | 7.5 | 10-120 | 960*520*1450 | 250 |
