Description

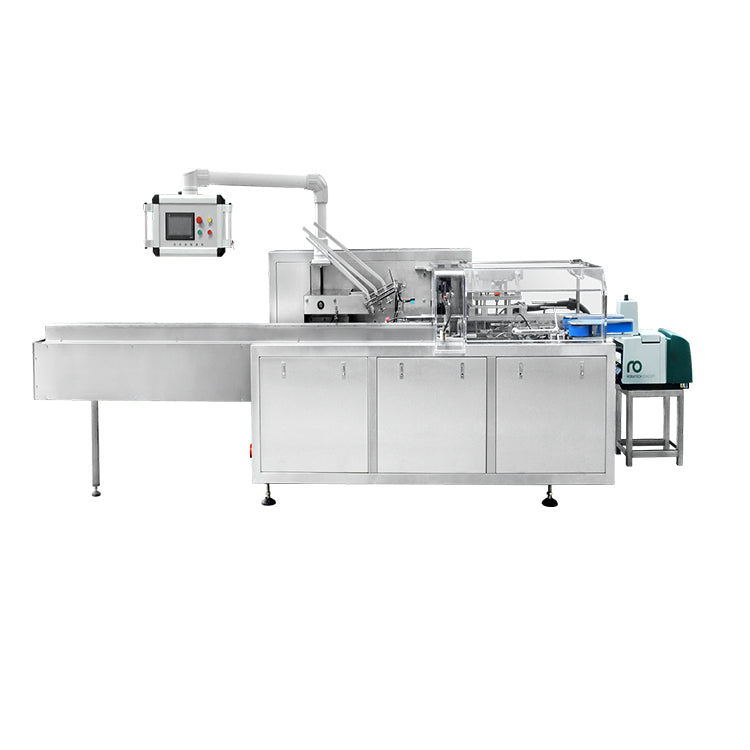

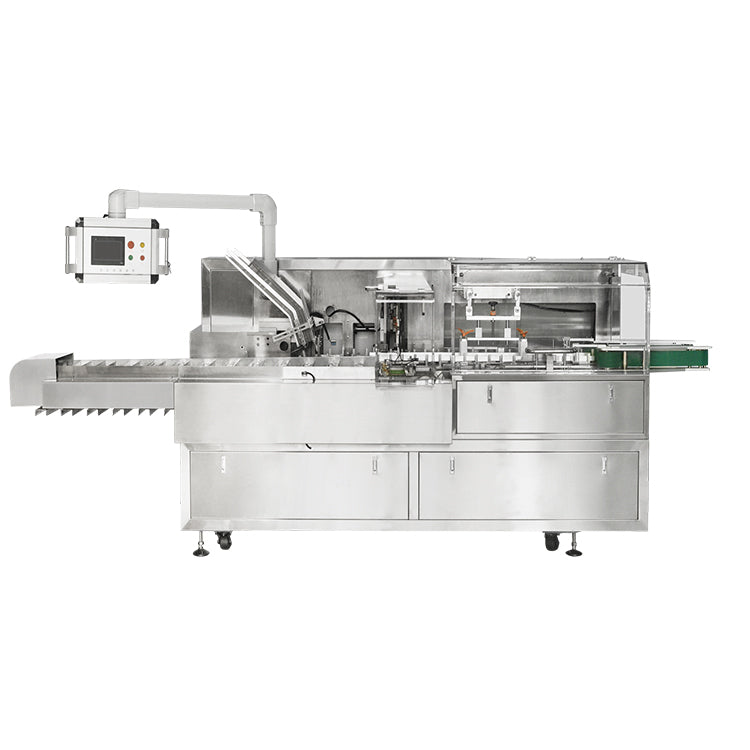

Cartoning machine, Fully Automatic Bottle Cartoning Machine ,Food Paper Box Packing Machine, Cardboard box cartoner
This cartoning machine is suitable for boxing and packaging of cosmetics, medicines, food, hardware, etc. It can automatically complete the folding of instructions, unfold the carton, box items, print batch numbers, and seal. Using PLC control, photoelectric monitoring of the movement of each part, if there is an abnormality in operation, it can automatically stop and display the cause, so as to eliminate the fault in time.
|
Model:
|
CM-120 | CM-130 |
CM-150
|
|
Packaging Speed:
|
30-100times/min
|
30-100times/min |
30-100times/min
|
|
Suitable box size:
|
L80-150mm/3.1”-5.9”
W30-90mm/1.2”-3.5”
H30-80mm/1.2”-3.1”
|
L80-150mm/3.1”-5.9”
W30-90mm/1.2”-3.5”
H30-80mm/1.2”-3.1”
|
L80-150mm/3.1”-5.9”
W30-90mm/1.2”-3.5”
H30-80mm/1.2”-3.1”
|
| Sealing method： | Folding/Gluing | Folding/Gluing | Folding/Gluing |
|
Air consumption:
|
20m³/h | 20m³/h |
20m³/h
|
|
Air pressure:
|
0.6~0.8Mpa | 0.6~0.8Mpa |
0.6~0.8Mpa
|
|
Power:
|
1.5kw
|
1.8kw
|
2.0kw |
|
Voltage:
|
110/220V 50-60hz | 110/220V 50-60hz | 110/220V 50-60hz |
|
Weight:
|
1200kgs/2645lbs | 1300kgs/2866lbs |
1500kgs/3306lbs
|
|
Packaging dimension:
|
3100*1600*1700mm (10’*5.2’*5.5′) |
3100*1600*1700mm (10’*5.2’*5.5′) |
3100*1600*1700mm
(10’*5.2’*5.5′) |
