Description
Blister packing machine
Machine Feature:

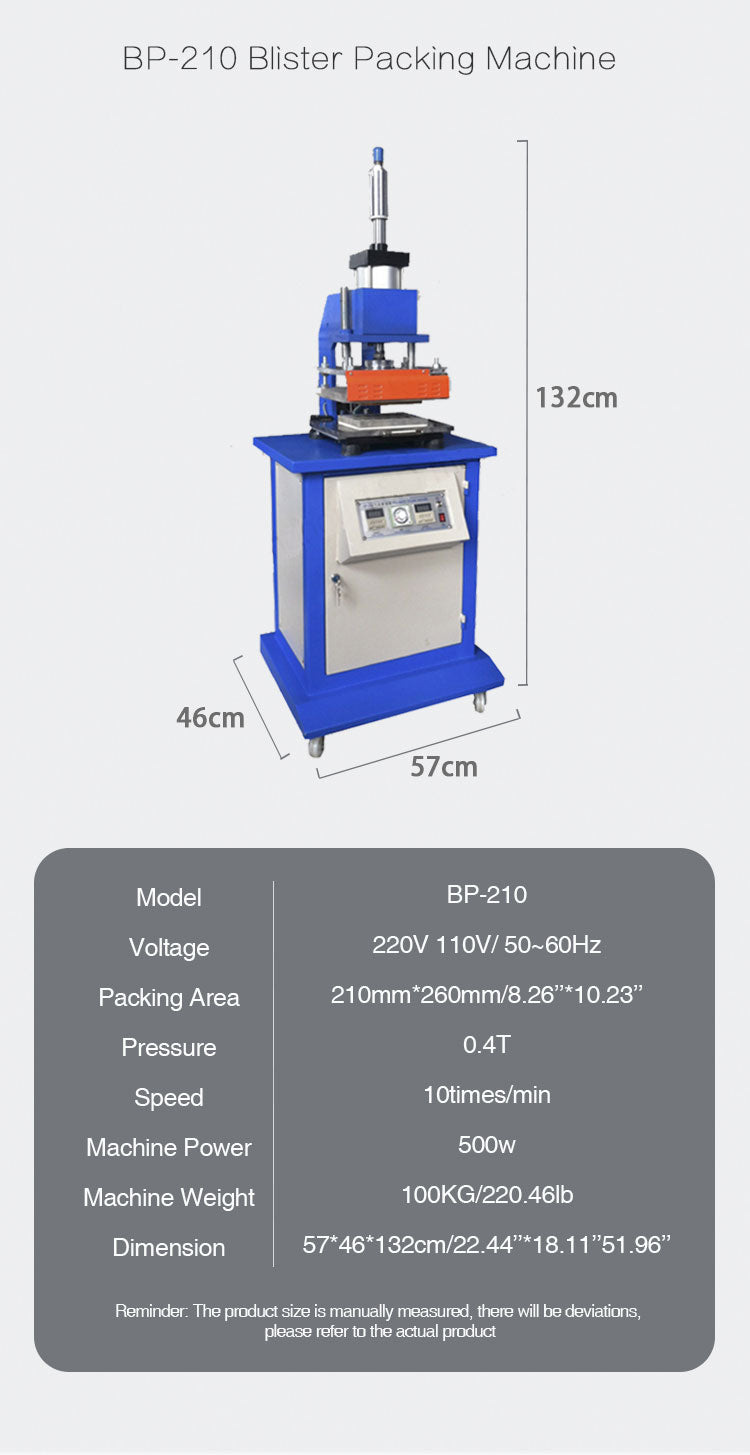

BP-210 is the basic model, does not include the film roll device,Without unwinding and rewinding functions,it is necessary to manually place the cut aluminum film pieces by pieces

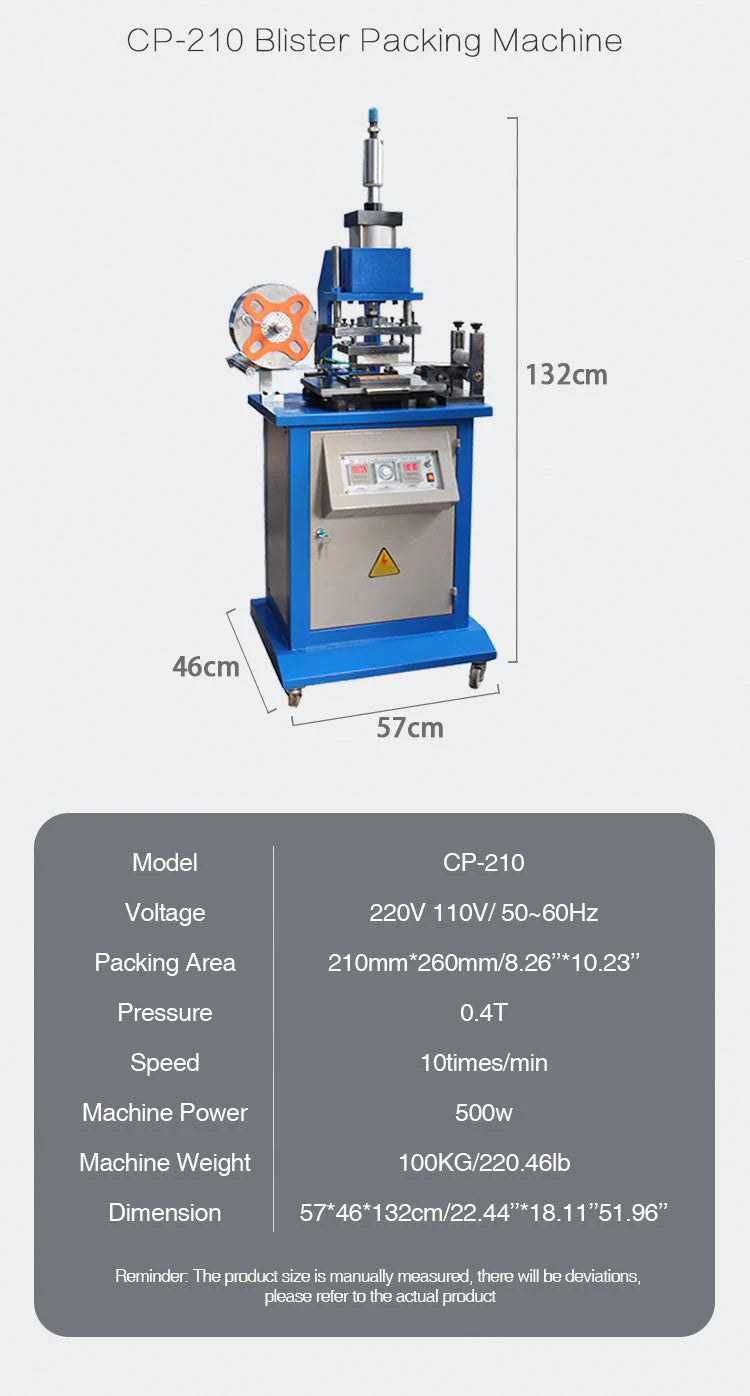

CP-210:1. Pneumatic control heating plate moves up and down 2. Automatically convey aluminum foil film 3. Digital display time relay controls heating time 4. The heating plate can be quickly replaced 5. An external air compressor is required 6. Foot pedal switch control

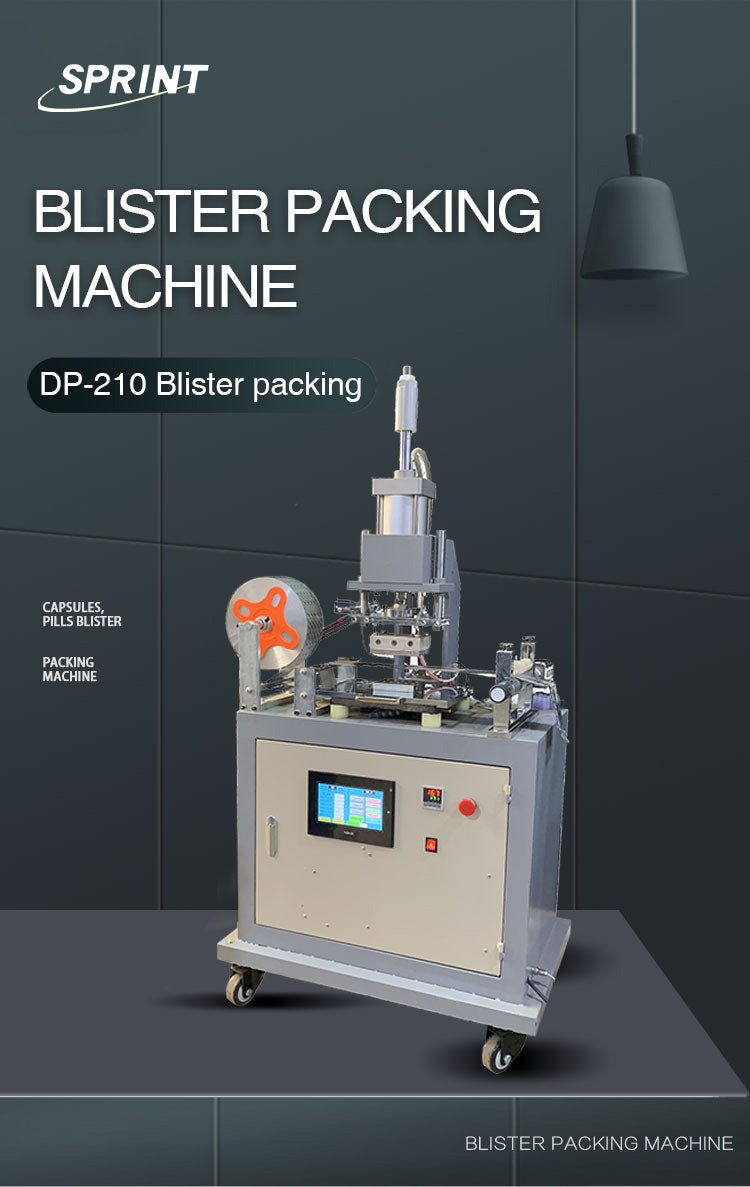

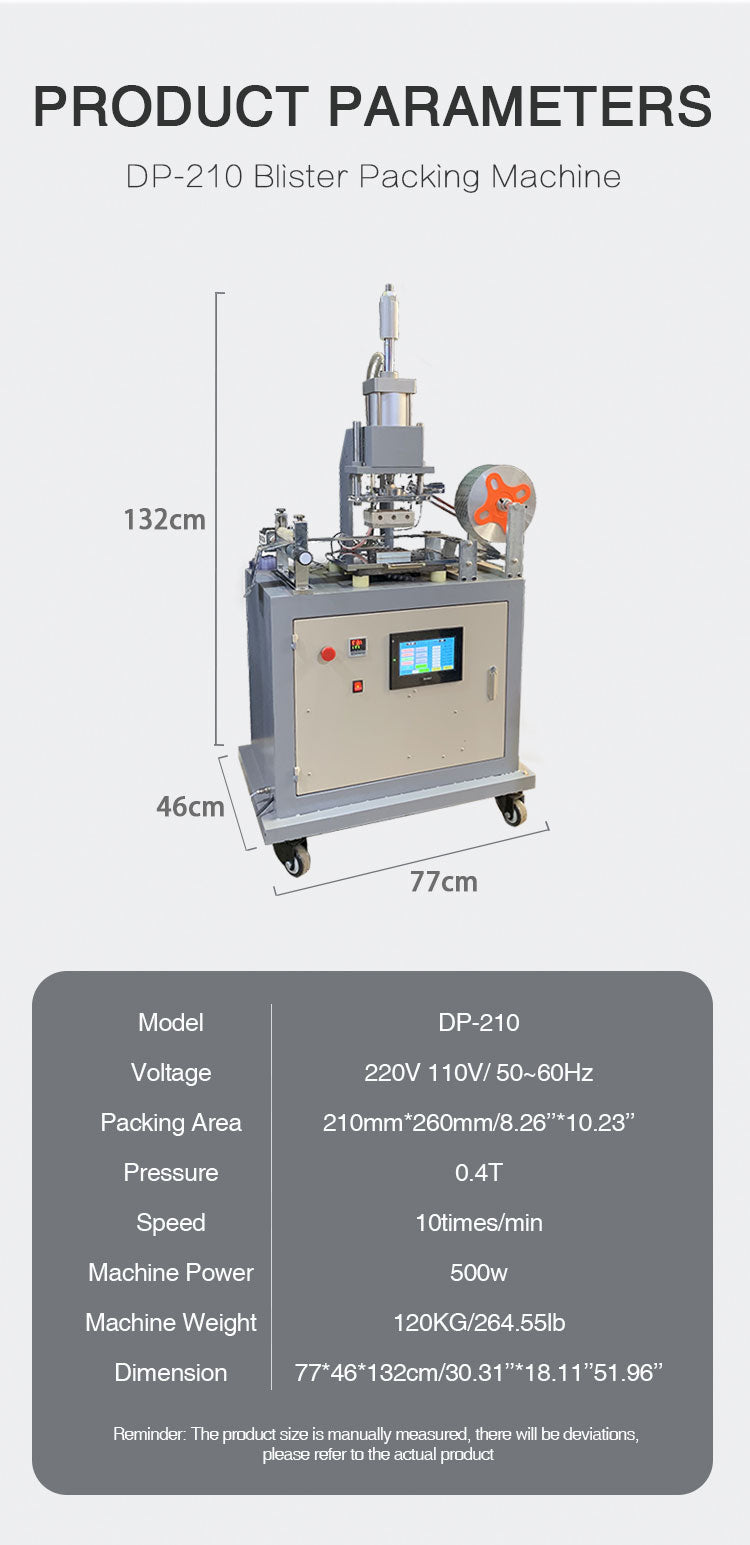

DP-210:On the basis of CP-210, added PLC controller and touch screen, stepping motor, photoelectric sensor,Higher efficiency, safety and stability
|
Model |
BP-210 |
CP-210 |
DP-210 |
|
Voltage |
220v / 50Hz |
||
|
Packing Area |
210mm*260mm |
||
|
Pressure |
0.4T |
||
|
Speed |
10times/min |
||
|
Machine Power |
500w |
||
|
Machine Weight |
100kg |
120kg |
|
|
Dimension |
570mm*460mm*1320mm |
770mm*460mm*1320mm |
|
Blister packing machine
