Description

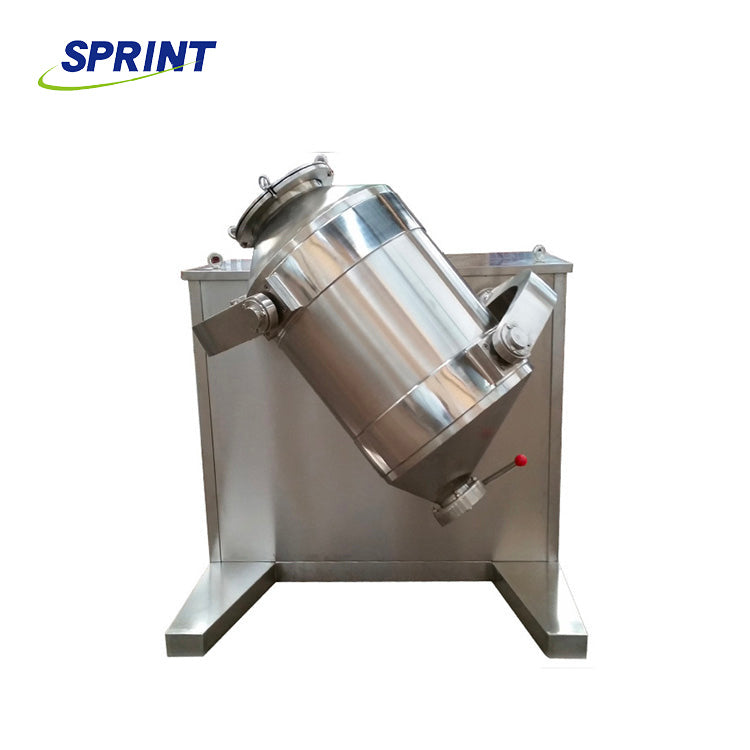

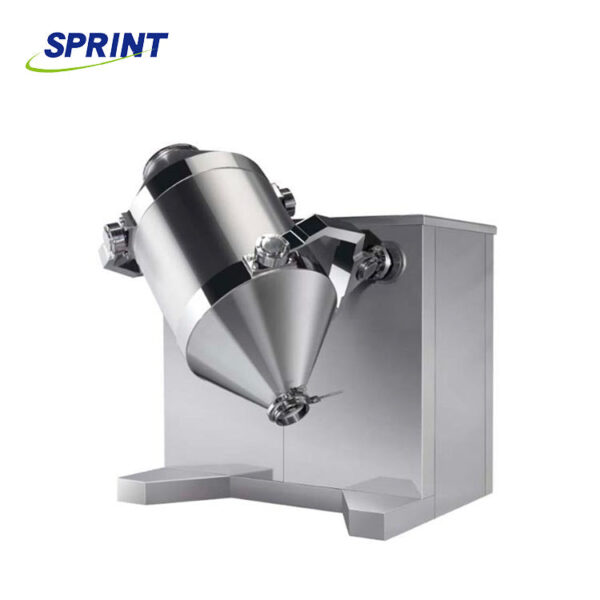

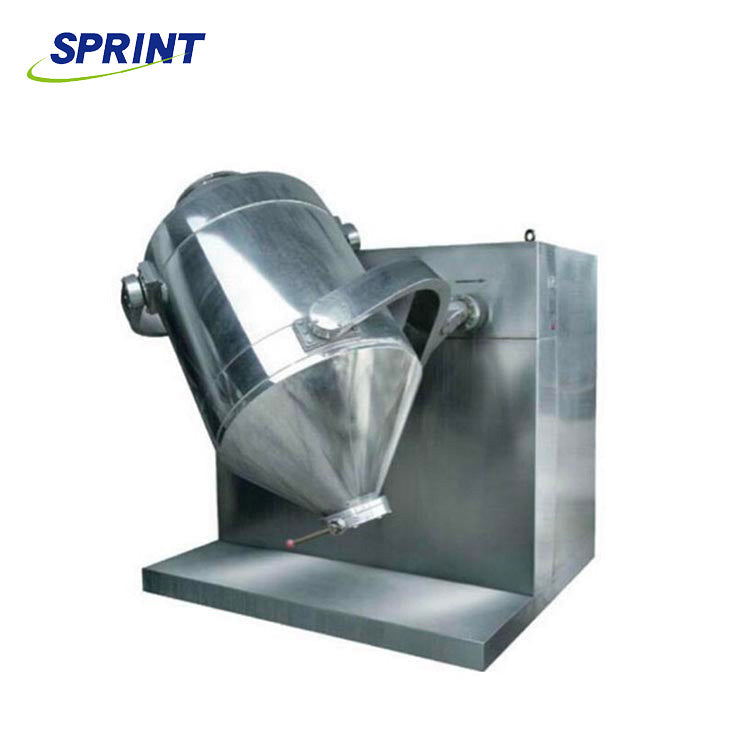

Dry Powder Blending Machine
Dry Powder Blending Machine is a kind of mixer, which is used for high uniformity mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and scientific research institutions.
| Model | SYH-5 | SYH-10 | SYH-15 | SYH-20 | SYH-50 | SYH-100 |
|
Barrel Capacity(L) |
5 | 10 | 15 | 20 | 50 | 100 |
|
Max Loading Capacity(L) |
4 | 8 | 12 | 16 | 40 | 80 |
|
Max Loading Weight(kg) |
2.5 | 5 | 7.5 | 10 | 25 | 50 |
|
Motor Power(kw) |
0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 |
|
Length(mm) |
720 | 850 | 900 | 1000 | 1400 | 1700 |
|
Width(mm) |
650 | 700 | 750 | 800 | 1000 | 1200 |
|
Hight (mm) |
950 | 1050 | 1100 | 1150 | 1200 | 1500 |
|
Total Weight(kg) |
150 | 180 | 200 | 250 | 300 | 500 |
| Model | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 |
|
Barrel Capacity(L) |
200 | 400 | 600 | 800 | 1000 | 1200 |
|
Max Loading Capacity(L) |
160 | 320 | 480 | 640 | 800 | 960 |
|
Max Loading Weight(kg) |
100 | 200 | 300 | 400 | 500 | 600 |
|
Motor Power(kw) |
2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
|
Length(mm) |
1800 | 2100 | 2400 | 2600 | 2650 | 2950 |
|
Width(mm) |
1400 | 1800 | 2200 | 2380 | 2500 | 2650 |
|
Hight (mm) |
1600 | 1950 | 2350 | 2500 | 2600 | 2750 |
|
Total Weight(kg) |
800 | 1200 | 1500 | 2000 | 2500 | 3000 |
During the operation of the three-dimensional mixer, due to the multi-directional operation of the mixing barrel, the flow and diffusion of various materials during the mixing process are accelerated, and the segregation and accumulation of the specific gravity of the materials caused by the centrifugal force of the general mixer are avoided at the same time Phenomenon, the mixing has no dead ends, Dry Powder Blending Machine can effectively ensure the quality of the mixture.
